The Airplane You’ve Been Waiting For…

...Prepare Yourself for an Adventure

Affordable, American, Rugged, Refined and Equipped. Choose all of the above: The compromises end now. Start your adventure with the Ranger R7.

The Vashon Ranger R7 is the first aircraft designed to fill the gap between aging, under-equipped certificated aircraft and newer but expensive Light Sport Aircraft. The Ranger is a 2-place aircraft that features rugged, full metal construction to take real world usage like flight training. It has one of the most spacious cockpits in its class, and is Always Fully Equipped. Even the base model, priced at $99,500, includes a complete Dynon-equipped panel, two-axis autopilot, 2020-compliant ADS-B Out, and more.

The Vashon Ranger R7 was made to lower the cost of flying

Affordable

The Ranger was made to lower the cost of flying. Skeptical? Vashon Aircraft was founded by the same visionary as Dynon Avionics. Enough said?

Always Fully Equipped

Even the base Ranger comes with a full Dynon glass panel avionics suite, including Autopilot, with features such as primary flight instruments, engine monitoring, 2020-compliant ADS-B Out, Mode S transponder, navigation and mapping, ADS-B traffic and weather, COM radio, two-place stereo intercom, angle of attack, Wi-Fi, and so much more. The Ranger’s electrical system is managed by the Advanced Control Module, featuring EFIS-controlled electronic circuit breakers, from Dynon’s Advanced Flight Systems division. Other standard equipment includes electric flaps and trim, full-size 600-6 tires, and LED position and landing lights. More About Equipment

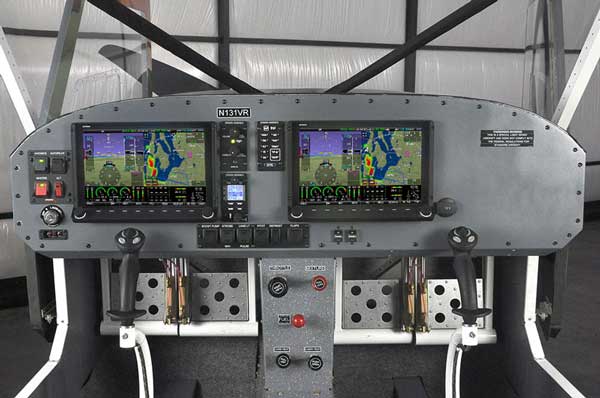

The Vashon Ranger R7 boasts a full Dynon equipped glass panel avionics suite
The Vashon Ranger R7 is designed, engineered, tested, and manufactured at the Vashon Aircraft factory

An American Airplane, from an American Company

The Ranger R7 is designed, engineered, tested, and manufactured at the Vashon Aircraft factory headquarters near Seattle, Washington, and is assembled at its Paine Field assembly and delivery center (just down the taxiway from the Boeing wide body plant.) The avionics are made by Dynon Avionics in Woodinville, Washington. The engine is made by Continental in Mobile, Alabama.

An Iconic Engine

The trusted Continental O-200-D provides over 70 years of world-tested reliability. Its lightweight design doesn’t sacrifice performance, durability, or service life.

The Vashon Ranger R7’s trusted Continental O-200-D provides over 70 years of world-tested reliability

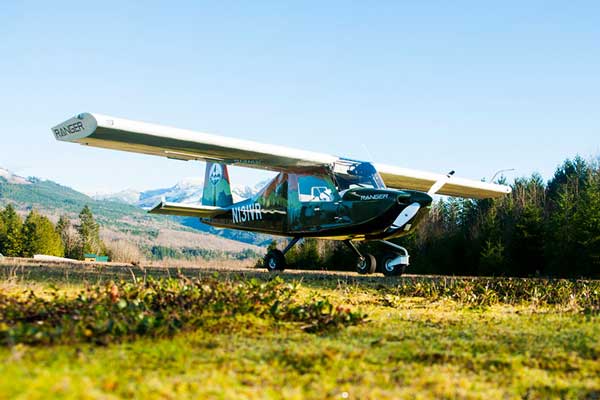

The Vashon Ranger features full metal construction, with no fragile fabric or hard to repair composite structure.

Rugged, yet Refined

The Ranger features full metal construction, with no fragile fabric or hard to repair composite structure. The rugged landing gear and airframe are designed to handle your good landings, your bad ones, student pilots, unpaved runways, and practically any adventure you choose.

A Flight School Workhorse

Adjustable rudder pedals accommodate pilots of all sizes. The 46” wide cabin is designed for 2 real people and is even more spacious than most 4-place certified aircraft.

The Vashon Ranger R7 is even more spacious than most 4-place certified aircraft.

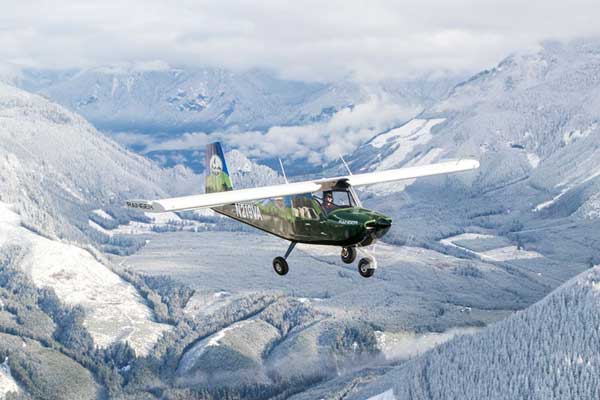

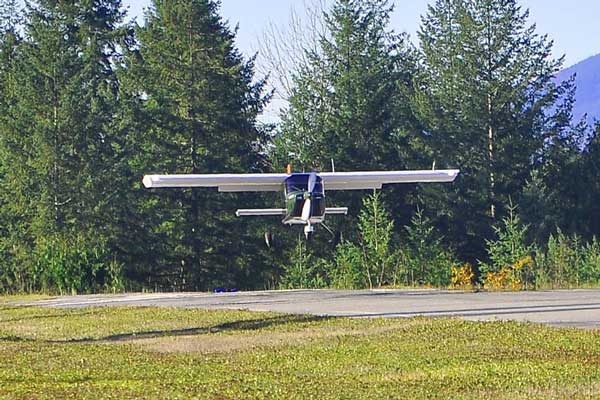

The Vashon Ranger R7’s strut-less, cantilevered high wing design and expansive windscreen offer stunning views.

Designed for Adventure

Both seats fold forward 90 degrees for your weekend camping adventure, creating a space big enough to actually sleep in. The Ranger’s strut-less, cantilevered high wing design and expansive windscreen offer stunning views.

Safer by Design

The Ranger incorporates multiple active and passive safety features, including a low stall speed, benign slow flight characteristics, and well-harmonized controls. Every aircraft is equipped with Autopilot with Level button and built-in airframe protections, Angle of Attack with progressive audible cues, and dual 5-Point Safety Restraints.

The Vashon Ranger incorporates multiple active and passive safety features, including a low stall speed, benign slow flight characteristics, and well-harmonized controls

RANGER CHARACTERISTICS

DYNON SKYVIEW

EVERY Ranger comes well-equipped with a fully-integrated Dynon SkyView Touch or HDX glass panel avionics system. SkyView is the most intuitive and capable EFIS system on the market, with advanced features like angle of attack, autopilot, synthetic vision, engine monitoring, beautiful graphics, unrivaled control ergonomics, touchscreen interface and much more.

  • The Vashon Ranger R7 comes complete with full Dynon Avionics glass panel EFIS
  • EVERY Vashon Ranger R7 comes well-equipped with a fully-integrated Dynon SkyView Touch or HDX glass panel avionics system.
  • Every Vashon Ranger R7 comes complete with two-axis approach capable Autopilot with other advanced features
  • The Vashon Ranger R7 is built with 2020 compliant ADS-B out and Mode S transponder
  • The Vashon Ranger R7 comes with ergonomic knobs and buttons to offer positive, intuitive controls in all flight conditions
  • Primary Flight Display with Synthetic Vision and Angle-of-Attack.
  • Complete, two-axis Autopilot with advanced features like Flight Director, VNAV, and altitude pre-select.
  • Engine Monitor with all EGTs/CHTs, Lean Assist, and Fuel Computer.
  • 2020-compliant ADS-B Out and Mode S Transponder.
  • Mapping and Navigation with Flight Planning and Electronic Flight Bag.
  • Superior situational awareness with full ADS-B In Traffic and Weather.
  • Superb touch screen works with ergonomic knobs and buttons to offer positive, intuitive controls in all flight conditions

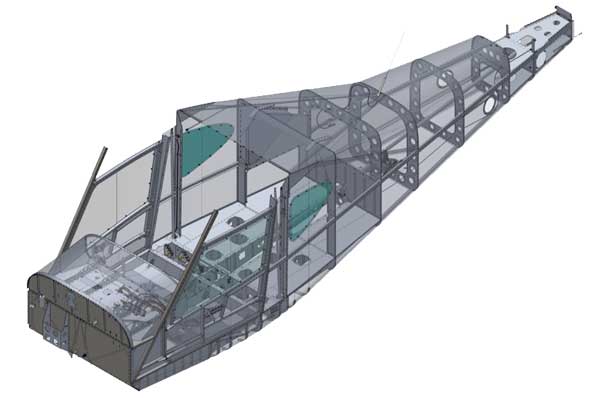

Frame and Body

The fuselage structure is a traditional, well-understood monocoque design in which the outer skin carries the major part of the load. The majority of the structural parts in the fuselage are produced from sheets of inherently corrosion resistant 6061-T6 aluminum using a CNC turret punch press.

The Ranger R7 is one of the first examples of a small aircraft that utilizes pre-painted metal to save manufacturing cost, which allows Vashon to produce a less expensive aircraft

Additionally, Vashon manufactures the vast majority of the airframe parts itself, reducing its supply chain drastically. Vashon invested heavily in manufacturing and tooling to build high quality parts as efficiently and effectively as possible to control costs.

The Vashon Ranger R7 uses pre-painted metal to save on costs

Power Plant

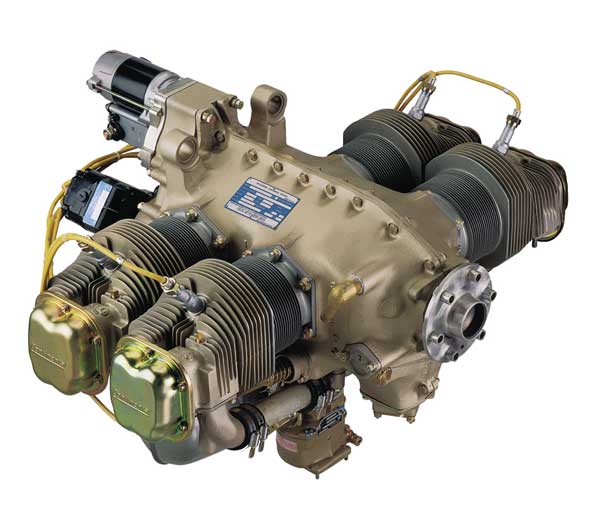

At the heart of the Ranger is the Continental O-200-D engine. It provides a 70+ year history of performance and reliability, with readily available parts and service support. This engine was specifically designed to be lightweight at 199 pounds, dry weight. The O-200-D produces 100 HP as a result of higher maximum rpm.

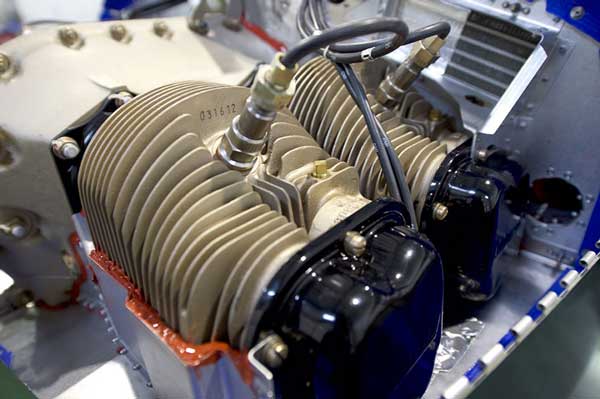

All Vashon Ranger R7 aircraft include a Continental O-200-D engine
Engine

Normally aspirated, direct drive, air-cooled, horizontally opposed, carburetor equipped, four-cylinder engine with 201.1 cu. In. displacement.

Manufacturer: Teledyne Continental Motors

Model Number: O-200-D

HP Rating/Engine Speed: 100 rated BHP at 2750 RPM

Propeller

Manufacturer: Catto

Model #: 2B-70x48

Number of Blades: 2

Diameter: 70 in

Type: Fixed Pitch

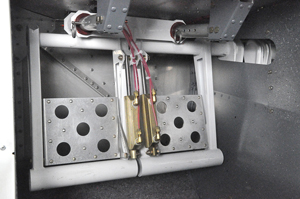

Vashon Ranger R7 aircraft have adjustable rudder pedals

Adjustable Pedals

For comfort and ease of use, the rudder pedals are adjustable to allow pilots to move them to the perfect spot for their body size.

The VashonRanger features 5-point safety restraints for both pilot and passenger

5-Point Restraints

The Ranger features 5-point safety restraints for both pilot and passenger, adding another level of safety.

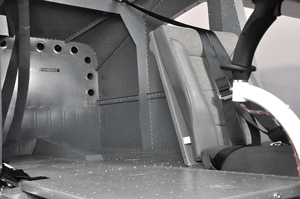

The Vashon Ranger R7’s seats also fold down, creating enough space to sleep comfortably

Spacious Cabin

Cockpit dimensions were designed to allow comfortable, two-up seating without crowding. The Ranger's cabin is wider than most 4-place certified aircraft. The Ranger’s seats also fold down, creating enough space to sleep comfortably inside.

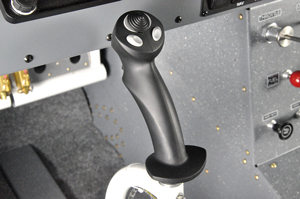

All Vashon Ranger R7 aircraft come with an ergonomic control stick allowing adjustment of trim and flaps

Flight Controls

Being able to adjust trim from the control stick allow for faster and more ergonomic adjustments in flight.

TAKE A LOOK INSIDE THE RANGER
